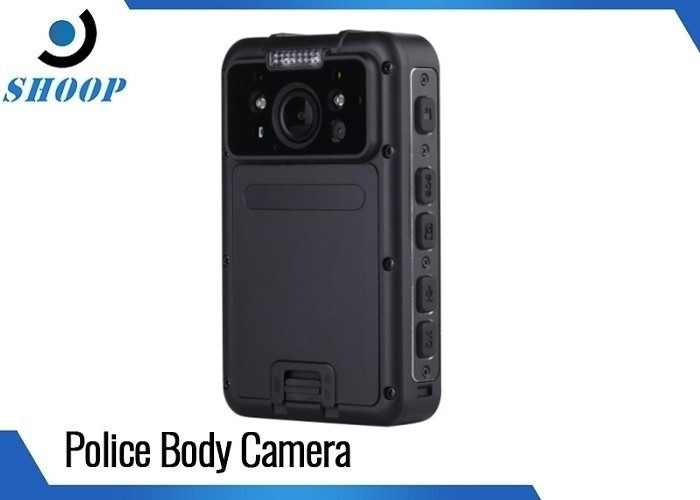

H.265 IP67 4G WIFI GPS Police Surveillance Body Cameras Ambarella H22
Police body camera specification of SOP-13.pdf
Body cameras are portable devices that can record video and audio.
The devices can also transmit live video and audio through 3G or 4G, do live tracking with GPS.
The devices have a TFT monitor and buttons on them and users can operate the device easily.
The body cameras are usually used by policemen, security guards, and other law enforcement officers.
Features of Body Cameras:
Parameters of Body Cameras:
Chipsets | Ambarella H22 |
Sensor | OV05A20 |
Indicators
|
3 color LED indicator for camera status 3 color LED indicator for battery level programmable buzzer vibration |
Durability | |
Shock Proof | 1.8m (5.9ft) |
IP Rating | IP67 |
Video/picture/audio | |
Coding | H.264/H.265 |
View Angle | 140 degrees |
Video Streaming Resolution
|
720P30 480P30 320P30 |
Audio Streaming | Support |
Text Streaming | Support |
Streaming Bitrate | 300kbs-4M kbs |
Video Format | MP4 |
Picture format | JPEG |
Audio Format | AAC |
Snap Shot | During recording |
EIS | 6 axis image stabilizer(Optional) |
SOS
|
Audio alarm activates in all cameras at same group and audio alarm in command center |
Wireless Connections
|
|
Wi-Fi | 2.4G&5G, AP/STA/P2P,Wi-Fi channel can be set by cam manager |
Bluetooth | Remote controller,support second development |
IR | 10 meters (2 IR LED) |
GPS | Optional |
NFC | Optional |
4G | Optional |
Clustered Talkback(PTT) | Optional |
Other features:
1. SOS alarm: After long pressing the SOS button, the device should automatically alarm, the management platform can flash the SOS distress location, other devices of the same group within the preset range can receive the SOS distress message, and the administrator should be able to call the live video.
2. PTT button: After platform add a group with some cameras, any camera can do group talk to others via press PTT button.
3. Two-way audio/video: camera can do video/audio intercom with other camera at same group, also can talk to platform software
4. Command receiving: when the center server push the instruction message, camera can receive the commanding and can send out voice reminders.
5. Data uploading: If there is important file which need upload to server urgently, no need go back to office, can choose file from camera and upload directly
6. Important file mark:During the recording process, the key files can be marked by one-key operation. The marking method is that the original file name contains "IMP". The marked files should be searchable in the management platform and can be distinguished from other files.
7. Face recognition: can do face compare and face verify. The camera can capture the face and compare it with the picture in the blacklist, which storage in local camera; as long as it matched, it will give an alert; and the users can use the camera after face verification.
