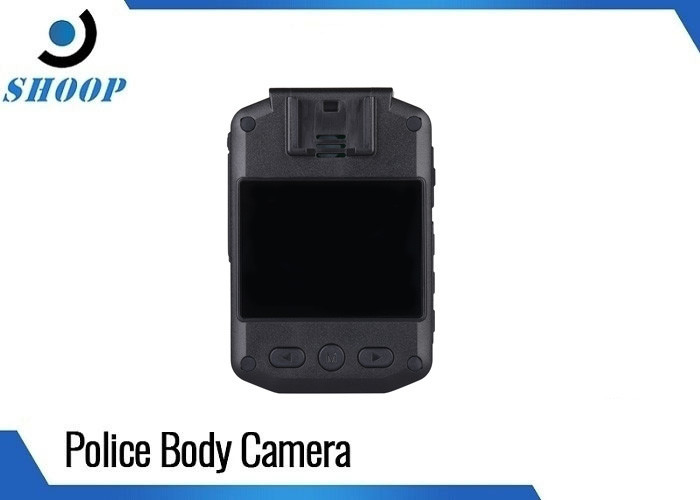

Night Vision 4M Pixel 1/3" CMOS Sensor H.264 / H.265 HD Body Police Camera
Specification of SOP-15-NTK675.pdf
This high-definition mini infrared night vision recorder has comprehensive functions and reliable performance,
and can be widely used in public, inspection, law, division, industry and commerce, taxation and other departments.
Using the HD Body Camera on the spot can record the situation on the spot, collect evidence, standardize behavior,
reproduce the scene picture, and ensure accuracy and fairness.
| Basic Parameters: | |
| Model | SOP-15 |
| CPU | NTK 675 |
| Sensor | OV4689 1/3”CMOS Sensor 4M pixel |
| DDR3 | DDR3 1GB |
| LENS | FOV=134° HD wide-angle lens H=105°,V=82° |
| LCD Screen | 2.0” LCD 960*240 pixel |
| Video | |
| Lens angle | Horizon angle ≥105° |
| Video resolution |
2560x1440P/30fps,2304x1296P/30fps,1920x1080P/30fps, 1440x1080P/30fps,1280X720P/30fps,848x480P/30fps, 720x480P/30fps |
| Video format | MP4 |
| Video type | H.264/H.265 |
| Frame rate | 2.5-10M bps |
| One key recording | Video recording and audio recording |
| Pre-record | time≥5s |
| Post-record | Support 30mins maximum |
| Video clip | 5mins/10mins/15mins/30mins |
| Photo capture in video | support |
| Stamp | Support 7bit device ID and 6bit police ID,and time/date stamp |
| Motion detection | Support |
| Video Recycle | Support |
| Photo | |
| Photo size |
36M(6928*5192)/32M(7600*4275)/21M(6144*3456)/16M(5336*3000) /12M(4608*2592)/10M(4384*2466)/8M(3456*1944)/5M(3008*1688) |
| Photo type | JPG |
| Continuous Photo | Support 2/3/5/10/20 pictures |
| Timer | Support 5/10seconds |
| Audio | |
| Audio format | AAC |
| Frame rate | 256k bps |
| Playback | |
| Fast forward | 2X,4X,8X |
| Fast backward | 2X,4X,8X |
| Slide show | Support |
| Brightness of LCD | ≥250LMX |
| Power saver | Support 30 seconds/1min/3min/5min |
| Battery | |
| type | Build in 3200mAh Li-ion |
| Charging time | 4.5 hours |
| Recording time | ≥9hours(1920*1080P/30fps H.264 ) |
| Power indicate | Support |
| Lowe power | Video and beep warning |
| Others | |
| Night vision | >=3M |
| Night vision mode | Auto/manual |
| Important mark on video | support |
| One key recording | support |
| Voice broadcast | support |
| GPS | Build-in(optional) |
| G-SENSOR | Support(optional) |
| Motor | Build-in |
| Auto power off | 1min/2min/3min/5min/10min |
| Password protection | support |
| Memory | 32gb, up to 128gb |
| Data output | MINI USB2.0 |
| Charger | 5V/1A |
| Working indicator | On/off |
| Microphone | 42dB -/2dB |
| Speaker | Build-in 8ohm 1W |
| Language | English, Chinese, and OEM |
| Size | 84mm*55mm*28.8mm |
| Weight | ≤110g |
| Working temperature | -20℃—55℃ |
| Storage temperature | -40–80℃ |
| Drop Level | 2meters |
| Waterproof level | IP67 |
| Accessories | 1.Usb cable, 2.user manual, 3.metal clip, 4.USB charger |
| Optional accessories | 1.single charging dock 2.external mini camera |
