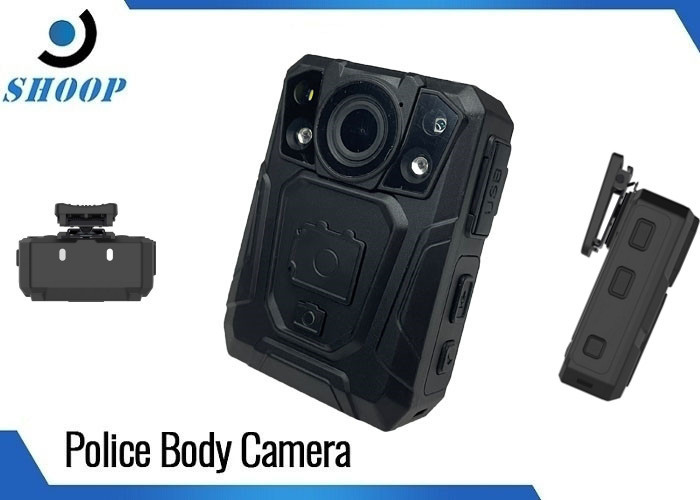

Ambarella H22 Personal Body Video Camera Law Enforcement Video Recorder
Surveillance Pocket Body Worn Camera for Law Enforcement Video Recorder
Specification of body police camera-SOP-04-GE.pdf
| Model |
SOP-04 |
| Parametersof IP68 Portable Police Body Worn Camera 2.0 Inch TFT: |
| Chipset |
Ambarella H22 |
| Size |
Demension(mm) |
76mm * 54 mm *27mm |
| Weight with gps |
130g |
| Video |
Pre-recording |
30 secons/ 60 seconds (Customizable) |
| Video resolution |
2560×1440 30P
2304×1296 30P
1920×1080 30P
1280×720 30P
848×480 30P
|
| Video split time |
5Min/15Min/30Min |
| Video format |
MP4 H.264 & H.265 |
| Photo |
Photo size |
5M/20M/25M/30M |
| Snap Shot |
Take pictures during recording or in stand-by |
| Lens |
Angle |
140° |
| Battery |
Battery capacity |
Built-in 3200mah |
| Battery life(gps/ir/lcd off, normal temp, H.264) |
8.5hrs @848*480 30P
9 hrs @ 1280x720P 30P
7hrs @1920*1080 30p |
| Charge time |
Approximate 4 hours |
| Features |
Take picture while video recording |
Yes |
| Digital zoom |
Up to 16X |
| Wi-Fi |
yes |
| GPS |
yes |
| 4G |
N/A |
| Infrared night vision |
High quality night vision |
| Storage (Memory) |
Brand MicroSD Class10 16G/32G/64G/128GB (Standard 32GB) |
| TFT screen |
2 inch LCD screen |
| Waterproof |
IP67 |
| White light |
Yes |
| Pre - recording |
OFF/ON |
| Loop-recording |
OFF/ON |
| Sound volume |
0~12 |
| Time zone |
-12~12 |
| Password protecting |
Yes |
| Watermark |
User ID, Time and date Stamp |
| Mulit langauges |
Portuguese,English,Russian, Japanses, Polish, French, Spanish etc |
| Temperature |
Storage temperature |
-20℃~60℃ |
| Store humidity |
15%~90% |
| Working temperature |
-20℃~60℃ |
| Working humidity |
15%~90% |
| Pogo pin |
N/A |
| USB cable type |
USB 2.0 |
| Standard Accessories |

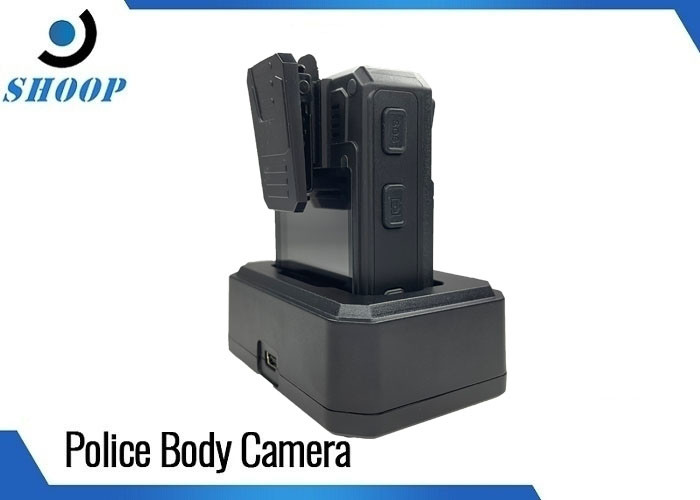

USB cable, Chest clip, Adapter, Charge Station, Shoulder clip,User Manual. |
| Packing list |
Netural black box packing, each set size: 18.6*15.5*7.4cm Each set weight:580g Packing detail: 20 sets/ctn, ctn size: 39.5*39*32.5 Each Carton G.W :11kgs/ctn |
2.0 Inch LCD display
* Frame Rate: 30f/s-60f/s
* Video Bitrate: 2.5Mbit/S
* Video: MP4 H.264/H.265 compressed
* Resolution:2560*1080,1296P30,1080P30,720P60,720P30, 480P
* Photo: JPEG 7696*4329, 4608*3456
* Wide angle: 140°
* Illumination requirement: day and night (auxiliary IR)
* Battery capacity: 3200mAh
* Memory capacity: 16G(32G/64G/128G)
* USB2. 0 hi-speed communication
* Contour dimension: 77*57*26mm
* Weight: 143g
* Operating temperature: -40-60℃
* Working relative humidity:40%-80%
* Storage temperature: -20-55℃
* Storage relative humidity: ≤93% (40℃)
* Waterproof level: IP67
* Drop resistance level: 2 meters
*flame-retarded shell
Reference Data:
*Battery capacity: 3500mAh
*Full charge time: 180 minutes
*Standby time: 600 minutes
*Continuous recording time: 480 minutes
