Place of Origin:

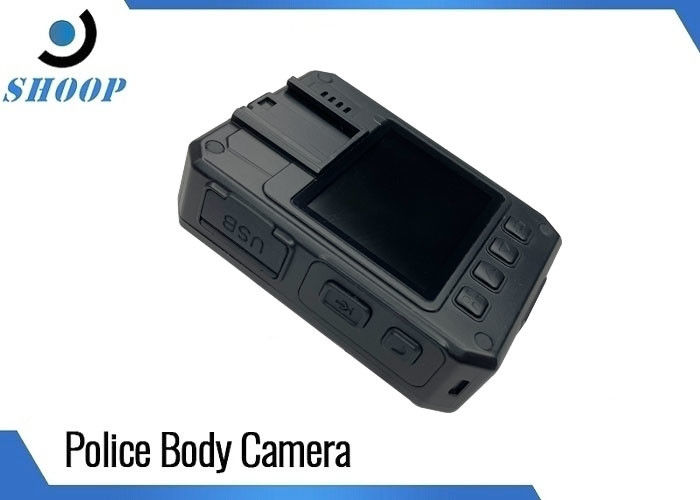

AES256 Portable GPS Police Pocket Video Camera With Single Charging Dock
Specification of body police camera-SOP-09.pdf
Application of Body Worn Cameras:
Body-worn cameras raise a number of considerations that agencies must take into account as they craft their policies.
These include the effects that cameras have on privacy and community relationships, concerns raised by frontline officers,
expectations that cameras create, and financial costs.
The following is a partial list of policy recommendations based on research conducted by PERF
and the COPS Office.1 Agencies should adapt these recommendations to fit their own needs, resources,
legal requirements, and philosophical approach.
Specification of Body Worn Cameras:
|Main Chipset||Ambarella A7L50|
|Sensor||5MP CMOS sensor|
|Lens||140 degree, wide angel F2.0|
|Video Resolution||2560x1080(30 FPS)/2304X1296(30 FPS)/1296 1920x1080P(30FPS)/1280x720(30FPS)/848x480(30FPS)|
|Video Format||H.264 MPEG4|
|Fast forward||2X, 4X, 8X,16X, 32X, 64X|
|Audio||High Quality Build-in Microphone.|
|Water Mark||User ID, Time and date Stamp Embedded into Video.|
|Camera||36 Megapixel Camera option with optional burst shot(5/10/15/20/25 photos)|
|Camera Format||36M, 16M, 12M, 8M, 5M|
|Snap Shot||Capture Photos During Video Recording|
|Shutter time||1/1000-1/2 seconds|
|Infrared illumination for night||Not less than 4.5 m in total darkness|
|Loop Recording||Loop recording to be switched on / off in the settings|
|Storage Level||Visual Indicator|
|One Button Recording||Support One Button Record|
|Activation prompt||Audible, Visual, and Tactile Vibration Confirm Activation of Record|
|IR Light||2 IR Lights|
|LCD Screen||2 inch TFT-LCD High-Resolution Color Display|
|Video Transfer||USB 2.0|
|Recording Angle||Wide Angle 140 degrees|
|focus range||Standard installation of at least 1.5 m to infinity|
|Night Vision||Up to 10 Meters with Visible Face Detection|
|Clip||High Quality Metal Clip with 360 degrees Rotation|
|GPS||Option, Internal GPS, GPS player to show the route of video;|
|Type||Built-in 3200mAH Lithium|
|Charging Time||180 minutes|
|Continuous Recording||8 Hours(LCD OFF), if power bank is connected, then no limitation|
|Low Battery Warning||Beep Alert|
|Unique ID number/unit||Include 5 digit device ID and 6 digit police ID|
|The ability to adjust the recording if the motion(at a distance of no more than 1m)|
|Photography during video recording||Support|
|Burst||5/10/15/20/25 Shot burst picture taking|
|Dimension||77 mm *57 mm *26mm (2.91” * 1.83” *0.93”)|
|Weight||150g (GPS built-in, metal clip); 135g( without GPS and metal clip)|
|Working Temperature||-40~60 degrees Celsius|
|Storage temperature||-28~55 degrees Celsius|
|The ability to turn off the display while recording||The display can be switched on or off during recording|
|Falling from height||Resistance to fall from a height of not less than 200 cm|
|Standard Accessories||USB cable,USB Charger,Car charger, User Manual, Universal metal clip,driver disc|
|Option||Shoulder mount, car mount, bullet camera, dock station, GPS,etc|
Q1. Do you offer free sample?
Yes, we offer free samples. But you would pay the sample fee firstly and the sample fee will be returned when massive order is placed.
Q2. How do you ensure the quality of products?
All goods are 100% inspected before shipping, we do at least 5 tests, including Incoming raw material test, sample test then bulk produce, functional test, burn-in test, appearance inspection.
Q3. About Lead Time
1. Sample order can be delivered from our factory in 3 working days.
2. General orders can be delivered from our factory in 3-5 working days.
3. Big orders can be delivered from our factory in 15-35 working days at most.
