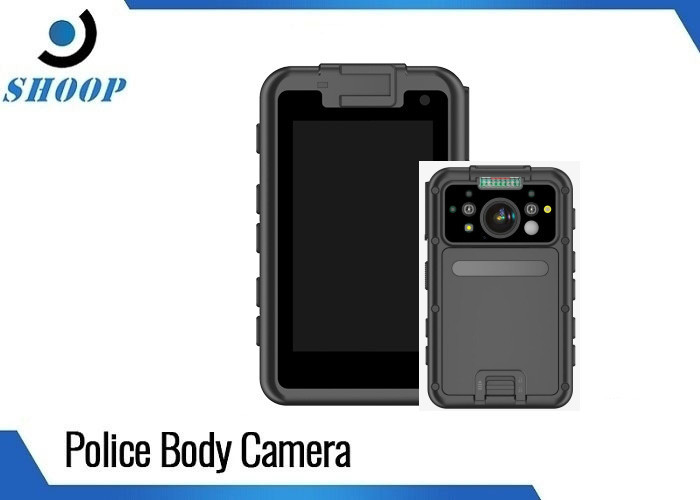

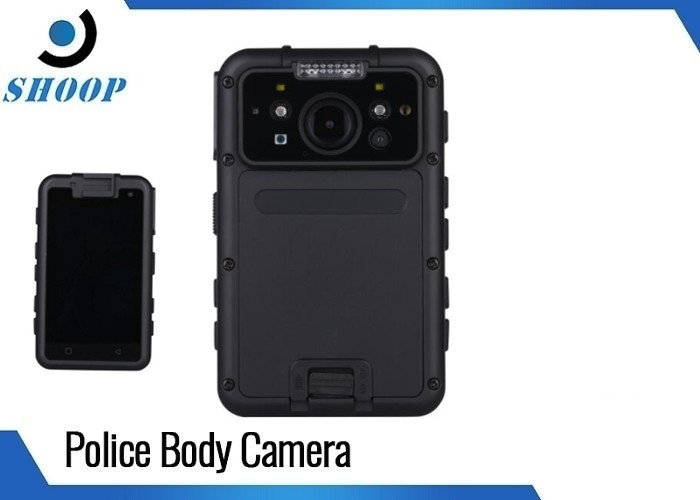

Waterproof IP68 Security Body Camera GPS 4G Wifi Video Recorder Camera
Law Enforcement Body Camera Waterproof HD 1080P GPS 4G Wifi Video Recorder Cam
SOP-18.pdf
Specifications of Law Enforcement Body Camera Waterproof HD 1080P GPS 4G Wifi :
| Chip | MT6758 (Four core processor 1.5GHz)+ Sony IMX376 |
| System | Android |
| Memory | 2+16GB Standard |
| Resolution | 12 Megapixel |
| Sensor | Gsensor/ Light sensor |
| Field of View | 120 degrees |
| Camera Lens | Scratch resistant |
| mage Format | JPG |
| Front camera | 12 Megapixel |
| Compression | H265/H.264 |
| RecordingResolution | 1920*1080/30FPS 1080*720/30FPS 1080*720/60FPS 640*480/30FPS |
| Dual steam | Support |
| Display | 3.1 inches TFT LCD color touch screen |
| One touch recording | yes |
| Audio | High quality, built in microphone |
| Compression | Opus |
| Audio PA | Class K |
| Speaker | built in |
| 4G/wifi live stream | Real time |
| SOS Alarm | Support, SOS Alarm when the user is in danger |
| Remotely Commands | Remote command to start or stop video recording |
| Files upload | Support files in cameras uploaded to CMS server; |
| Face detection | Support Alarm if face detection take effect on cameras |
| Plate detection | Support Alarm if Plate detection take effect on cameras |
| Frequency Band |
GSM: B2/3/5/8; WCDMA: B1/2/5/8; FDD_LTE:B1.B2.B3.B4.B5.B7.B8.B28A/B;TDD_LTE: |
| Sim card Slot | Built in , SIM Card |
| Wi Fi | Built in |
| GPS | Built in |
| G/M Sensor | Built in , G sensor/ Light sensor |
| SOS Alarm | System should be able to get S OS alarm if personnel are in danger |
| Night Vision | 2pcs IR leds, switch automatically or manually; 1 white light, 1 laser light |
| Identification range up to 5 meters , Detection range up to 10meters | |
| White balance | Auto White balance |
| Laser light | Support |
| Shortcut Button | Power/Video/Audio/Photo/PTT/SOS/OK/FN |
| SIM | 1 x Sim Card slot |
| Type-C | 1 x Type-c |
| USB | 1 x Micro |
| USB Interface Function | charging |
| OTG devices (including USB cameras) | |
| Software Upgrade/COPY Data | |
| Battery | 3000mAH replaceable battery |
| Appearance | Size:91mm*58mm*26mm ,Weight:160g |
| Protection class | IP68,Cumulative drop 30 times on any 6 sides within 2 meters without damage |
| Structure appearance | Two-color mold process, soft rubber keys, with limit button |
1 . Android system: 8-core MTK high-speed processor, Android8.1 intelligent operating system;
2 . Touch screen: equipped with 3.1-inch narrow border IPS HD multi-point capacitive touch screen;
3 . Custom lens: 3 cameras in total, front and back, HD non-destructive shooting at any angle;
4 . Infrared night vision: the light sensor automatically switches the infrared mode, and the contour is clear within 15 meters;
5 . Full Netcom: 4G signal, Wifi signal, AP private network, etc .;
6 . Gravity sensing: After the law enforcement instrument is hit or hit the ground, it can trigger the acceleration sensor to start automatic recording;
7 . Satellite positioning: Built-in GPS / BeiDou / GLONASS, real-time positioning can be viewed after the platform is equipped, and it has functions such as electronic fences and track query;
Menu button: long press the menu button in standby mode, red and blue flashes appear with alarm sound, very suitable for self-defense, long press the menu button again to exit
Camera button: Press the camera button once in the standby state to realize the camera function; press the camera button during the recording process to realize the capture of the details
Light button: press it for the first time to turn on the LED lighting, press it again to exit; press it for the third time, there will be a white flashing light, press it for the fourth time to exit
Bottom buckle: used to replace the battery, you need to fix the buckle after changing the battery to prevent the battery from falling
Screen film: tear off the round lens film of the body camera before use, which can improve the video and photo experience
