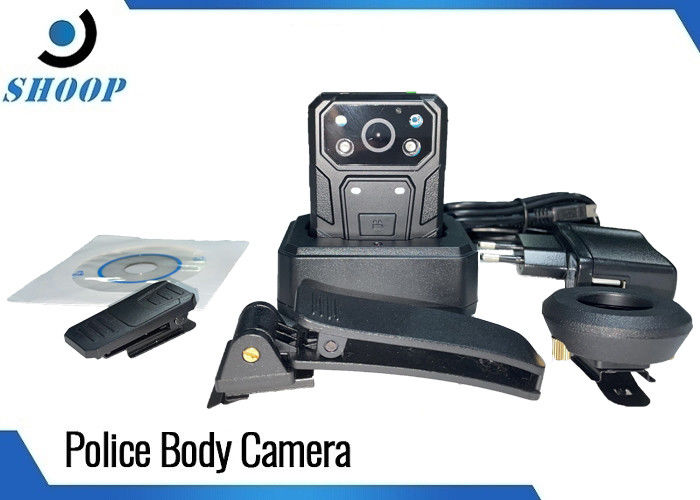

1296P GPS Ambarella A7L50 Body Camera Recorder 5MP CMOS

1296P GPS Ambarella A7L50 Body Camera Recorder 5MP CMOS

Ambarella A7L50 Body Camera Recorder

Body Camera Recorder 5MP CMOS

1296P GPS Video Body Camera

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Special Features:
Waterproof / Weatherproof
1 Year
Built-in 3200mAh Lithium Battery
Product Description

GPS Video WIFI Police Style Body Camera Recorder With 1296P
The BWC is a small audio and video recording device, usually worn on the police uniform, usually on the chest. The use of BWC will reduce the idea of police use of force.
1. The camera pixel is relatively high up to 36 million pixels, (1296P/30) video resolution. The overall size of the equipment is 77 mm *57 mm *26mm (height×width×thickness). Mass ≤135g;
2. 3200 mAh battery, when the battery is fully charged, should meet the continuous recording time of 9 hours.
3. 2-inch display.
4. Voice broadcast: the recorder can turn on or off the sound, vibration prompt function 5. Firewall: turn on or off optional;
6. GPS positioning: open or close optional, after turning on the GPS, you can record the movement track of the recorder in real-time;
7. Secret shooting mode: Turn on the secret shooting mode to turn off all the indicators and the display to enter the silent shooting mode;
8. Wifi function (optional): built-in wifi module, after connecting to a computer, you can control and save audio and video data on the recorder;
9. The recorder is equipped with a shoulder clip as standard, which can be used to fix the video on the shoulder, or it can be a shoulder clip and a leather case on the chest.
10. Red and blue flashing alarm function

Main ChipsetAmbarella A7L50
Sensor5MP CMOS sensor
Lens140 degree, wide angel F2.0
Video Resolution2560x1080(30 FPS)/2304X1296(30 FPS)/1296 1920x1080P(30FPS)/1280x720(30FPS)/848x480(30FPS)
Video FormatH.264 MPEG4
Fast forward2X, 4X, 8X,16X, 32X, 64X
AudioHigh Quality Build-in Microphone.
Audio FormatAAC2/MP3
Water MarkUser ID, Time and date Stamp Embedded into Video.
Camera36 Megapixel Camera option with optional burst shot(5/10/15/20/25 photos)
Camera Format36M, 16M, 12M, 8M, 5M
Snap ShotCapture Photos During Video Recording
Shutter time1/1000-1/2 seconds
Infrared illumination for nightNot less than 4.5 m in total darkness
Car ModeSupport
Loop RecordingLoop recording to be switched on / off in the settings
Cycle RecordingSupport
Storage Capacity16G/32G/64G/128G
Storage LevelVisual Indicator
Record LedRed
One Button RecordingSupport One Button Record
Activation promptAudible, Visual, and Tactile Vibration Confirm Activation of Record
IR Light2 IR Lights
LCD Screen2 inch TFT-LCD High-Resolution Color Display
Audio PlaybackYes
Video TransferUSB 2.0
Recording AngleWide Angle 140 degrees
focus rangeStandard installation of at least 1.5 m to infinity
Night VisionUp to 10 Meters with Visible Face Detection
ClipHigh Quality Metal Clip with 360 degrees Rotation
GPSOption, Internal GPS, GPS player to show the route of video;
TypeBuilt-in 3200mAH Lithium
Charging Time180 minutes
Continuous Recording8 Hours(LCD OFF), if power bank is connected, then no limitation
Low Battery WarningBeep Alert
Unique ID number/unitInclude 5 digit device ID and 6 digit police ID

Password Protection

To set an administrator password on the PC management software to allow deletion from PC, and
modify the password in the PC management software.
User can only view the videos but cannot delete it.

Pre-record function

25 seconds pre-record(1080P30), 35 seconds pre-record(720p30)
1080p30, 10/20/25/off seconds
720p30, 10/20/30/35/off seconds

Post-record function10/20/30/60/120/off seconds last-record

Motion Detector

The ability to adjust the recording if the motion(at a distance of no more than 1m)
Photography during video recordingSupport

Sound notification

Beep when starting video or stopping video, or beep sound when opening the menu; beep volume is adjustable in the menu;
Burst5/10/15/20/25 Shot burst picture taking
Dimension77 mm *57 mm *26mm (2.91” * 1.83” *0.93”)

The video recording time of 32
GB of memory

not less than 20,000 -5 megapixel photos
not less than 12,000 megapixels photos -12megapixel photos
video recording Not less than 8 hours and at 1920x1080p30 for video recording
Not less than 11hours and 30 minutes at 1280x720p30 for video recording
Not less than 11hours and 30 minutes 848x480p60 for video recording
Not less than 17 hours at 848x480p30 video recording
Not less than 500 hours for Audio Maximum recording time

Weight150g (GPS built-in, metal clip); 135g( without GPS and metal clip)
Working Temperature-40~60 degrees Celsius
Storage temperature-28~55 degrees Celsius
The ability to turn off the display while recordingThe display can be switched on or off during recording
Falling from heightResistance to fall from a height of not less than 200 cm
Standard AccessoriesUSB cable,USB Charger,Car charger, User Manual, Universal metal clip,driver disc
OptionShoulder mount, car mount, bullet camera, dock station, GPS,etc
