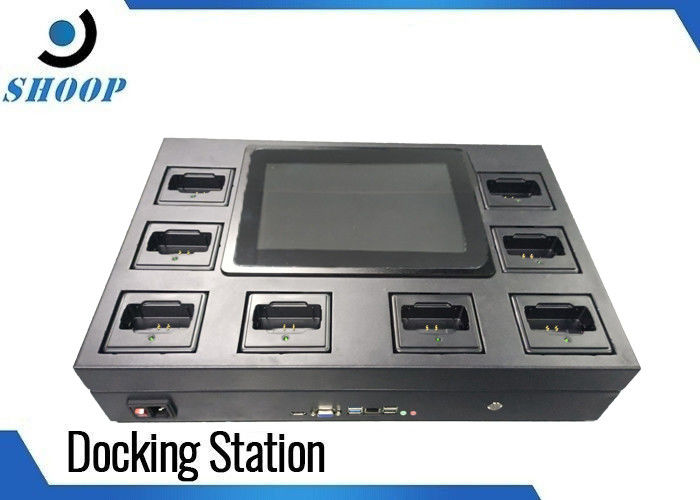

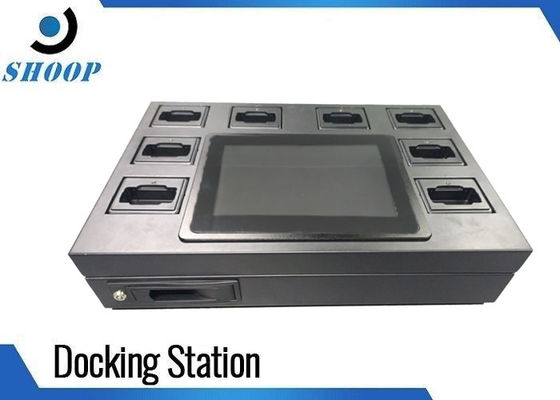

8 Units Police Body Camera Docking Station With HDD LCD Screen
8 Units Police Body Cameras Docking Station With HDD LCD Screen
Body Camera Docking Station is a terminal management solution specially designed and developed to ensure safe collection and convenient management of body camera data. It can support multithreaded uploading of 8 body cameras, automatic data clearing, automatic collection, automatic archiving, quick editing and inquiry of authorization documents.
Characteristics of the Police Body Camera Docking Station
• Innovative unattended mode to reduce work burden and improve work efficiency
• Can be used as dump server
• Built-in storage, backup disk space, defined data life cycle
• Multiple ports and multiple access at one station
• The acquisition workstation is equipped with 8 data interfaces and can process multiple law enforcement instruments simultaneously
Rich information display function
• LCD displays the user information of the access law enforcement instrument: the name, number and unit of the police officer;
• LCD display the power status of the connected law enforcement instrument;
• Dynamic display of the progress of law enforcement instrument data copy with completion percentage;
• LCD displays the approximate time and remaining time required to copy the law enforcement instrument data;
• LCD display of workstation model, storage space, running status of the machine, software version
Specification:
| HARDWARE | |
| Housing | Housing Black, portable, with the anti-static surface. Integrated independent-use design; |
| Size | L50cm * W35cm* H11cm |
| Weight | 9.3kg |
| Power Cable | Options: CN, EU, UK, UL |
|
Number of connections
|
8pcs body camera simultaneous connection
|
|
Working environment
|
-10℃- +60℃
|
|
Connector
|
Body camera charging base
|
|
Storage humidity
|
10% - 90%
|
|
Screen
|
10.4 inch LCD, 800x600(or 1024x768) resolution
|
|
Screen type
|
10.4 inch capacity screen |
|
Network interface
|
RJ45 standard input |
|
CPU
|
Intel Core i3 |
|
Processor
|
J1900 quad-core processor |
|
Ports
|
Meet a variety of needs, USB*4, HDMI, VGA, LAN port,
audio input/output, power interface
|
|
Storage
|
4G+64G
|
|
Hard disk
|
Removable hard disk box with lock, 2Tb( 4T, 8T is optional) |
|
Platform system
|
Windows10(English) |
|
Power supply mode
|
Automatic 110-220V AC |
|
SOFTWARE
|
|
|
Application software
|
DEMS |
