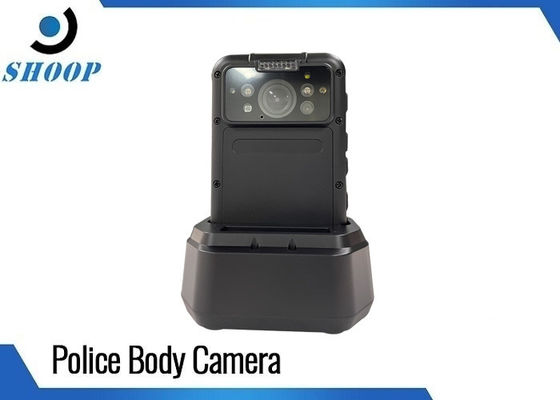

MTK 4G WIFI 3000mAh IP68 Live Streaming Police Body Video Camera
Based on 4G/WiFi network, using high-efficiency H.264/H.265 video compression technology, flexible stream adaptive technology,
reliable FEC forward error correction technology, dual stream technology while recording and transmitting, and low-time expansion
Video and audio anti-packet loss technology, wireless bandwidth prediction technology, closed-loop technology based on dynamic
expectations, real-time transmission of 1080P high-definition video, to achieve high-definition transmission effects.
Under the same wireless network conditions, the quality of wireless video transmission is higher than similar products at home and abroad.
1. Recording function
In the view preview mode, press the corresponding key, the law enforcement recorder should automatically start recording video and audio information; press the stop button, the law enforcement recorder should stop recording and save the recorded content.
2. Recording function
In the framing preview mode, press the corresponding key to automatically start recording audio information; press the stop key, the law enforcement recorder should stop recording and save the recorded content.
3. Camera function
In the framing preview mode, press the camera key, you should be able to take pictures. It has the functions of time-lapse photography and
time-lapse photography.
4. Storage function
The law enforcement recorder should be able to store logs, pictures, videos, and audio information.
| Basic configuration | |
| Main chip | MTK MT6762 8-core processor2.0GHZ |
| Operating system | Android 8.1 Intelligent operating system |
|
Lens module |
Front FF camera:OV4689 FOV:164 degree, F/NO=2.5 Front camera:Sony 13M Rear FF camera:Gekewei 5M Horizontal 50 degrees |
| Memory | 2+16GB Standard |
| Display / touch screen | 3.1 inch IPS screen 480(RGB)*800,Narrow border + ON CELL multi-touch screen |
| Horn | 18*13mm 1.5W Waterproof speaker |
| Microphone | Dual Micphone,With active noise reduction |
| Auxiliary light source | 4 infrared lights, 1 white light, 1 laser light |
| Light sensor | Standard configuration for controlling automatic on and off of infrared light |
| Motion sensor | Acceleration sensor (standard), gyroscope support (optional) |
| Storage card | Built-in TF card, up to 128GB |
| Wifi | Support 802.11b/gprotocol,2.4GHz+5GHz |
| Bluetooth/NFC | Built-in Bluetooth 4.1, standard NFC, can read ID information |
| Positioning | Built-in GLONASS/GPS Combined positioning+AGPS,Support BEIDOU/Galileo |
| Interface | MiniUSB,3.5mm Standard headphone interface, can be connected to external camera, intercom headphone cable, etc. |
| Function parameter | |
| Video resolution | 1920*1080/30FPS,1080*720/30FPS,1080*720/60FPS,640*480/30FPS |
| Photo size | 4M,8M,16M,32M |
| Infrared night vision | Infrared light can cover 70% of the effective area within a viewing angle of 3 meters, and the viewing distance is 15 meters |
| Video function | Support 10-second pre-recording, support video capture |
| Camera function | Support continuous shooting, automatic white balance, 4x digital zoom |
| Distortion correction | Horizontal and vertical correction, less than 10% distortion |
| Native playback | Support local playback, can adjust the progress bar to play through touch screen |
| Focus mark | Marks documents recorded by law enforcement equipment |
| Overlay information | Equipment serial number + police information, year, month, day, hour, minute, second, location information |
| Motion Detection | In the standby state, when an object enters the shooting range of the law enforcement recorder, the recording function is automatically turned on. When the object leaves the shooting range of the law enforcement recorder, the recording function is ended and the video file is saved |
| Face detection | Optional |
| Battery | |
| Battery | Replaceable high-voltage battery:3000mAh |
| Charging method | Adapter / PC-USB auxiliary charging / car USB with fast charging function,5V / 2A charging |
| Built-in battery | Built-in 75mAh small battery, 3 minutes of continuous power when replacing the battery |
| Shooting time | The default resolution of a single battery can be continuous shooting for more than 8 hours, when 4G is turned on, continuous shooting can be performed for more than 5 hours, the flight mode can stand by 1000H, and charging ≦ 2 hours |
| Energy saving mode | Automatically turn off the screen and enter power saving mode within 3 minutes |
| Structure appearance | |
| Appearance craft | Two-color mold process, soft rubber keys, with limit button |
| Appearance specifications | Size:91mm*58mm*66.2mm,Weight:160g |
| Protection class | IP68,Cumulative drop 30 times on any 6 sides within 2 meters without damage |
| working environment | Temperature:-30～55℃,Relative humidity:40%～80% |
| Storage environment | Temperature:-40～60℃,Relative humidity:93%(40℃) |
