Place of Origin:
Shenzhen
Brand Name:
SHOOP
Certification:
CE
Model Number:
SOP-18
Contact Us

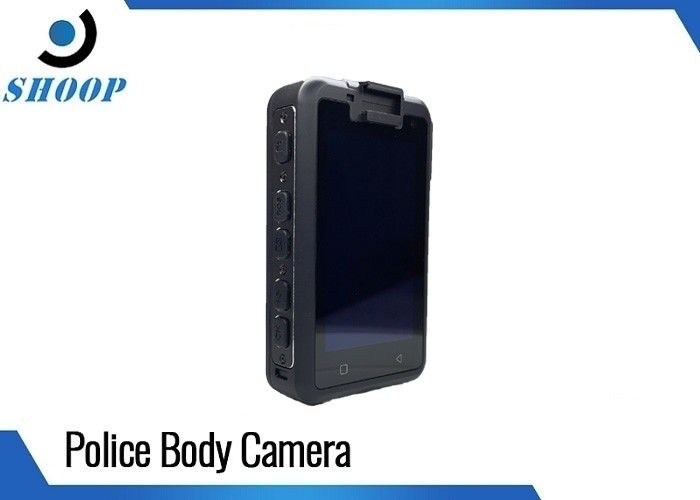

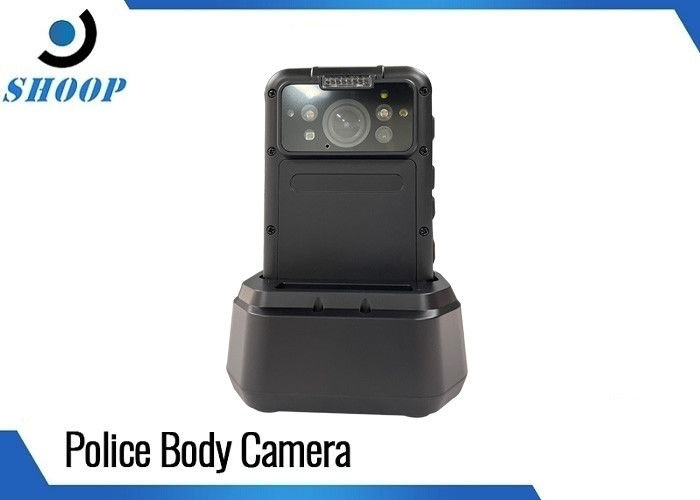

3000mAh GPS MTK MT6762 WIFI 4G GPS Body Camera With Touch Screen
The multi-function body camera supports replaceable batteries, and an external replaceable battery can be replaced at any time to
ensure battery life. It can support up to 128G of storage space. In addition, it also has night vision, file transfer, motion detection, one-key switching and other functions, which can assist law enforcement officers in completing law enforcement tasks perfectly.
Specification of Body Camera:
| Main chip | MTK MT6762 8-core processor2.0GHZ |
| Operating system | Android8.1 Intelligent operating system |
|
Lens module |
Front FF camera:OV4689 FOV:164 degree, F/NO=2.5 Front camera:Sony 13M Rear FF camera:Gekewei 5M Horizontal 50 degrees |
| Memory | 2+16GB Standard |
| Display / touch screen | 3.1 inch IPS screen 480(RGB)*800,Narrow border + ON CELL multi-touch screen |
| Horn | 18*13mm 1.5W Waterproof speaker |
| Microphone | Dual Micphone,With active noise reduction |
| Auxiliary light source | 4 infrared lights, 1 white light, 1 laser light |
| Light sensor | Standard configuration for controlling automatic on and off of infrared light |
| Motion sensor | Acceleration sensor (standard), gyroscope support (optional) |
| Storage card | Built-in TF card, up to 128GB |
| Wifi | Support 802.11b/gprotocol,2.4GHz+5GHz |
| Bluetooth/NFC | Built-in Bluetooth 4.1, standard NFC, can read ID information |
| Positioning | Built-in GLONASS/GPS Combined positioning+AGPS,Support BEIDOU/Galileo |
| Interface | MiniUSB,3.5mm Standard headphone interface, can be connected to external camera, intercom headphone cable, etc. |
| Function parameter | |
| Video resolution | 1920*1080/30FPS,1080*720/30FPS,1080*720/60FPS,640*480/30FPS |
| Photo size | 4M,8M,16M,32M |
| Infrared night vision | Infrared light can cover 70% of the effective area within a viewing angle of 3 meters, and the viewing distance is 15 meters |
| Video function | Support 10-second pre-recording, support video capture |
| Camera function | Support continuous shooting, automatic white balance, 4x digital zoom |
| Distortion correction | Horizontal and vertical correction, less than 10% distortion |
| Native playback | Support local playback, can adjust the progress bar to play through touch screen |
| Focus mark | Marks documents recorded by law enforcement equipment |
| Overlay information | Equipment serial number + police information, year, month, day, hour, minute, second, location information |
| Motion Detection | In the standby state, when an object enters the shooting range of the law enforcement recorder, the recording function is automatically turned on. When the object leaves the shooting range of the law enforcement recorder, the recording function is ended and the video file is saved |
| Face detection | Optional |
| Battery | |
| Battery | Replaceable high-voltage battery:3000mAh |
| Charging method | Adapter / PC-USB auxiliary charging / car USB with fast charging function,5V / 2A charging |
| Built-in battery | Built-in 75mAh small battery, 3 minutes of continuous power when replacing the battery |
| Shooting time | The default resolution of a single battery can be continuous shooting for more than 8 hours, when 4G is turned on, continuous shooting can be performed for more than 5 hours, the flight mode can stand by 1000H, and charging ≦ 2 hours |
| Energy saving mode | Automatically turn off the screen and enter power saving mode within 3 minutes |
| Structure appearance | |
| Appearance craft | Two-color mold process, soft rubber keys, with limit button |
| Appearance specifications | Size:91mm*58mm*66.2mm,Weight:160g |
