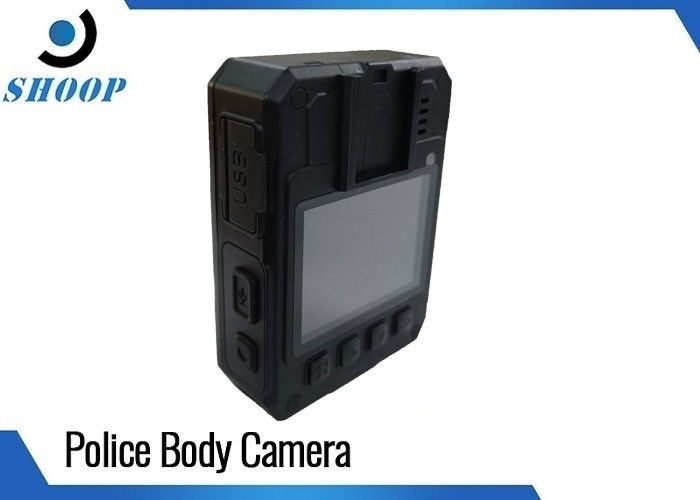

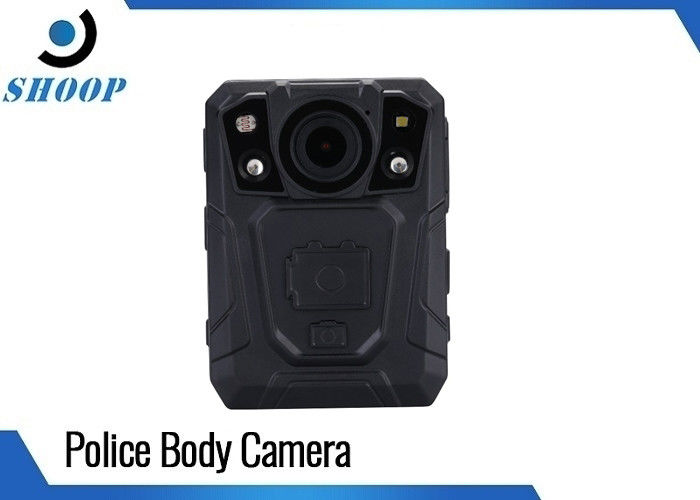

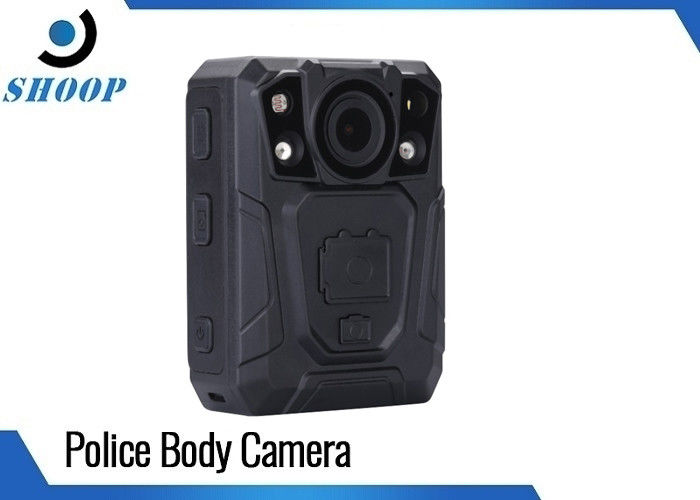

WIFI AES256 Police With Body Cameras Study Ambarella H22 Waterproof IP67

WIFI AES256 Police With Body Cameras Study Ambarella H22 Waterproof IP67
WIFI AES256 Police With Body Cameras Study Ambarella H22 Waterproof IP67
video play

Large Image :  WIFI AES256 Police With Body Cameras Study Ambarella H22 Waterproof IP67

Product Details:
Place of Origin: Shenzhen
Brand Name: Shoop
Certification: CE,ROHS,IP67
Model Number: SOP-04
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: 1 piece in a gift box, 20pcs in one carton, carton size is 45*36*33.5cm
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 pcs/per month
Detailed Product Description
Sensor: CMOS Compression: H.264 MPEG4/H.265 MPEG4
Resolution: 5MP 2560x1440(30FPS) Night Vision: Yes
Waterproof: IP67 Special Features: Support GPS WIFI
Storage: 16GB/32GB/64GB/128GB/256GB Warranty: 18 Months
High Light:

AES256 Police Body Cameras


Police Body Cameras Ambarella H22


IP67 Waterproof Police Enforcement Cameras

WIFI AES256 Police With Body Cameras Study Ambarella H22 Waterproof IP67
Specification of body police camera-SOP-04-GE.pdf
(Police With Body Cameras):
The police body camera is a single-soldier law enforcement equipment, applicable to various police types and law enforcement agencies.
It has the main functions of digital camera, digital camera, microphone, and some auxiliary functions, such as positioning.
It can conduct dynamic and static evidence collection during the law enforcement process.
It is light in weight, small in size, flexible and convenient to wear; it has excellent waterproof, shockproof and drop resistance capabilities.

  • One is to take into account the different law enforcement environments of different law enforcement entities-for example, when used by public security police, in order to maintain a deterrent against criminals, it is necessary to highlight the sense of majesty of law police body cameras.
  • While law enforcement personnel from urban management and health departments need to be flexible when used The purpose of law enforcement is to downplay the sense of existence of police body cameras -in terms of design, it can be flexibly selected according to different law enforcement subjects.
  • The second is that the battery has a large capacity and a long working time, which can continuously record more than 10 hours. If an external power supply is used, the working time can be longer.
  • The third is the high resolution, which can fully meet the needs of law enforcement agencies. The camera can achieve a high-definition 2560x1440 (30FPS) resolution, and the camera has a resolution of 30 million pixels.
  • Fourth, it has a high level of waterproof, dustproof and drop resistance. Among them, the general police body camera has a waterproof rating of IP55 and can work normally under heavy rain, and the sop-04 waterproof is IP67 and can work normally at 1 meter underwater; while the bare metal concrete floor drops to a height of 2 meters, the stored data will not be lost.

Specification of Police With Body Cameras:

Main ChipsetAmbarella H22
SensorIMX335, 5MP CMOS sensor
Lens140 degree, wide angel F2.0
Video Resolution


Video FormatH.264 MPEG4/H.265 MPEG4
Fast forward2X, 4X, 8X,16X, 32X, 64X
REW2X, 4X, 8X, 16X, 32X, 64X
AudioHigh Quality Build-in Microphone.
Audio FormatAAC2/MP3
Water MarkUser ID, Time and date Stamp Embedded into Video.
Photo Burst5/10/15/20/25 photos
Self timer capture3 Sec/5 Sec/10 Sec/30 Sec/60 Sec

Camera Format

30M(6400x4800 4:3), 16M(4608x3456 4:3), 12M(4000x3000 4:3), 8M(3840x2160 4:3), 5M(2560x1920
4:3), 3M(2048x1536 4:3), 2M(1920x1080 16:9)

Snap ShotCapture Photos During Video Recording
Shutter time1/1000-1/2 seconds
Infrared illumination for night vision

Not less than 4.5 m in total darkness

Loop RecordingLoop recording to be switched on / off in the settings
Storage Capacity16G/32G/64G/128G
Storage LevelVisual Indicator
Record LedRed
One Button RecordingSupport One Button Record
Activation promptAudible, Visual, and Tactile Vibration Confirm Activation of Record
IR Light2 IR Lights
LCD Screen2 inch TFT-LCD High-Resolution Color Display
Audio PlaybackYes
Video TransferUSB 2.0
Recording AngleWide Angle 140 degrees
Focus rangeStandard installation of at least 1.5 m to infinity
Night VisionUp to 10 Meters with Visible Face Detection
ClipHigh Quality Metal Clip with 360 degrees Rotation
GPSOption, Internal GPS, GPS player to show the route of video;
TypeBuilt-in 3200mAH Lithium
Charging Time180 minutes
Continuous Recording

No less than 10hours for 1080p30(H.264),
power consumption 270mAh(1080p30, LCD off);

Low Battery WarningBeep Alert
Unique ID number/unitInclude 5 digit device ID and 6 digit police ID
Password Protection

To set an administrator password on the PC management software to allow deletion from PC, and modify the password in the PC management software.
User can only view the videos but cannot delete it.

Pre-record function10 seconds pre-record(1080P30), 17seconds pre-record(720p30)
Post-record function10/20/30/1Min/5Min/off seconds last-record
Motion DetectorThe ability to adjust the recording if the motion(at a distance of no more than 1m)
Burst5/10/15/20/25 Shot burst picture taking
Dimension77 mm *57 mm *26mm (2.91” * 1.83” *0.93”)
The video recording time of 32 GB of memory(h.264)6.75GB/Hour, Video recording Not less than 4 hours and at 1920x1080p30 for video recording
The video recording time of 32 GB of memory(h.265)4.5GB/Hour, Video recording Not less than 6 hours and at 1920x1080p30 for video recording
The ability to turn off theThe display can be switched on or off during recording
Falling from heightResistance to fall from a height of not less than 200 cm
Standard AccessoriesUSB Cable, USB Charger, User Manual, driver disc, Universal metal clip
OptionShoulder mount, car mount, bullet camera, dock station, GPS, single charging dock, etc
