Place of Origin:
Shenzhen
Brand Name:
Shoop
Certification:
CE
Model Number:
Sop-04
Contact Us

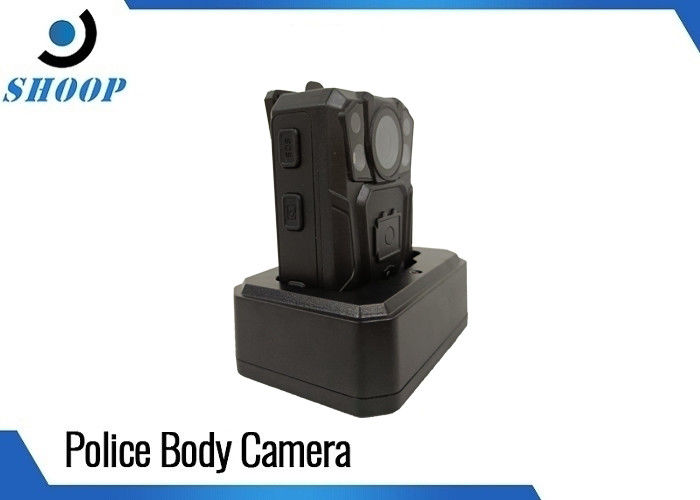

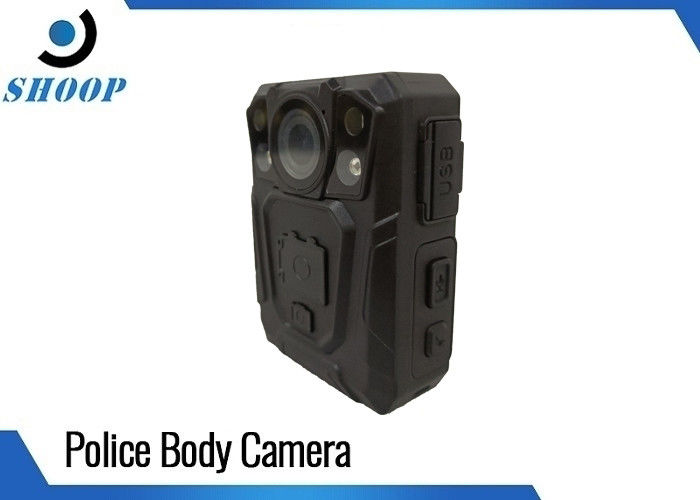

Ambarella H22 Wifi Night Vision Body Camera With 140 Degrees
Specification of body police camera-SOP-04.pdf
Although the law enforcement recorder is small, it has many functions. The WIFI smart law enforcement recorder is a wearable device carefully built to solve the needs of video and audio data collection and storage, and on-site real-time video transmission. The 4G smart law enforcement recorder can store on-site data such as camera, photo, and recording in law enforcement.
At the same time, it can transmit the live high-definition video and audio back to the back-end command system through the 4G/WIFI wireless network. The back-end decision-makers can understand the scene and guide the work at the first time. The law enforcement recorder also has a global positioning function, which can receive GPS and provide real-time positioning information.
Features:
Specification:
| Main Chipset | Ambarella H22 |
| VIDEO ENCRYPTION | AES256(OPTION) |
| Sensor | IMX335, 5MP CMOS sensor |
| Lens | 140 degree, wide angel F2.0 |
| Video Resolution | 2560x1440(30FPS)/2304x1296(30FPS)/1920x1440(30FPS)/1920x1080P(30FPS)/1280x720(30FPS)/848x480(30FPS) |
| Video Format | H.264 MPEG4/H.265 MPEG4 |
| Fast forward | 2X, 4X, 8X,16X, 32X, 64X |
| REW | 2X, 4X, 8X, 16X, 32X, 64X |
| Audio | High Quality Build-in Microphone. |
| Audio Format | AAC2/MP3 |
| Water Mark | User ID, Time and date Stamp Embedded into Video. |
| Photo Burst | 5/10/15/20/25 photos |
| Self timer capture | 3 Sec/5 Sec/10 Sec/30 Sec/60 Sec |
|
Camera Format |
30M(6400x4800 4:3), 16M(4608x3456 4:3), 12M(4000x3000 4:3), 8M(3840x2160 4:3), 5M(2560x1920 4:3), 3M(2048x1536 4:3), 2M(1920x1080 16:9) |
| Snap Shot | Capture Photos During Video Recording |
| Shutter time | 1/1000-1/2 seconds |
| Infrared illumination for night vision |
Not less than 4.5 m in total darkness |
| Loop Recording | Loop recording to be switched on / off in the settings |
| Storage Capacity | 16G/32G/64G/128G |
| Storage Level | Visual Indicator |
| Record Led | Red |
| One Button Recording | Support One Button Record |
| Activation prompt | Audible, Visual, and Tactile Vibration Confirm Activation of Record |
| IR Light | 2 IR Lights |
| VIDEO/IMAGE REVIEW | |
| LCD Screen | 2 inch TFT-LCD High-Resolution Color Display |
| Audio Playback | Yes |
| Video Transfer | USB 2.0 |
| CAMERA | |
| Recording Angle | Wide Angle 140 degrees |
| Focus range | Standard installation of at least 1.5 m to infinity |
| Night Vision | Up to 10 Meters with Visible Face Detection |
| Waterproof | IP67 |
| Clip | High Quality Metal Clip with 360 degrees Rotation |
| Wifi | Option |
| GPS | Option, Internal GPS, GPS player to show the route of video; |
| BATTERY | |
| Type | Built-in 3200mAH Lithium |
