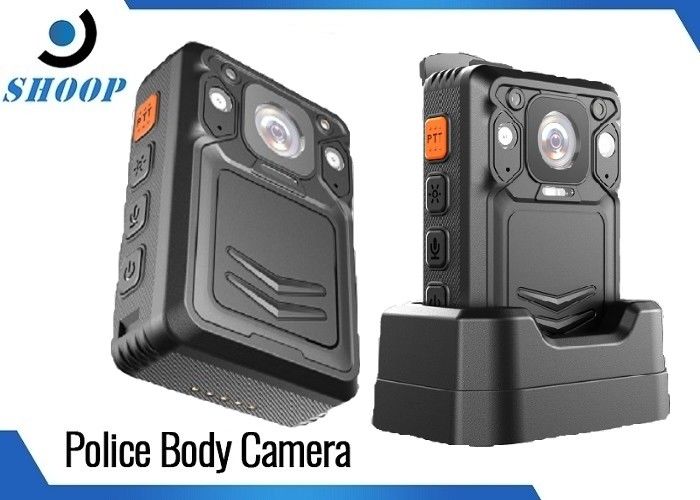

H.265 140 Degrees Ambarella H22 1080P 4G HD Body Worn Camera
Police body camera specification of SOP-13.pdf
HD Body Worn Camera integrates functions such as digital video, photography, and audio recording. With high-end lens,
the actual effective pixel number is far from the average level of supermarket products, and the super wide-angle imaging can
clearly record all the details of law enforcement. The resolution can be selected according to the needs, and the multiple files
are adjustable, which can save the memory space to the greatest extent.
It can realize the three-electric function, a built-in battery can realize continuous recording for a long time, and an external battery
can be replaced during continuous shooting to realize uninterrupted recording and long battery life.
Even if the power is exhausted or suddenly cut off, the law enforcement recorder can also automatically save data.
It can be connected to various cameras, walkie-talkies, wireless remote control and other equipment,
and also has multiple functions such as host playback, file transfer, and motion detection.
Description of HD Body Worn Camera:
1. Ambarella H22 Chipset: Uses Ambarella H22 chip, supporting 1920x1080p 30fps and 1280x720p 30fps video recording.
2. H.265 Video Coding: Supports H.265 video coding, which only uses 50% of storage space compared with H.264 video.
3. 3200mAh Lithium-Polymer Battery: Support 12 hours recording using 1920x1080p 30fps.
4. Drop-in Dock Charger: Drop-in dock charger is included in optional accessories, it can be used to charge device and upload data to PC.
5. Night Vision Recording, Auto IR: 2 infrared Lights for lowlight or night-time situations. With a photoresistor in the camera, it switches IR lights on/off automatically. AES256 Encryption for Local Storage and WIFI Steaming Files.
6. HTTPS&HTTP for WIFI Data Transferring
7. Optional Bluetooth Support
| SPECIFICATION OF HD Body Worn Camera (4G LIVE) | |
| Size/weight/button | |
| Size | 84.5mm*56.3mm*27.3mm |
| Weight | 140g(0.31lb) |
| Indicators | |
| Chipsets | Ambarella H22 |
| Sensor | OV05A20 |
| Durability | |
| Shock Proof | 1.8m (5.9ft) |
| IP Rating | IP67 |
| Video/picture/audio | |
| Coding | H.264/H.265 |
| View Angle | 140 degrees |
|
Video Resolution
|
1080P30 ( Chipsets support 4K,limit to 1080 for lower power consumption) 720P30 480P30 |
|
Video Streaming Resolution
|
720P30 480P30 320P30 |
| Audio Streaming | Support |
| Text Streaming | Support |
| Streaming Bitrate | 300kbs-4M kbs |
| Video Format | MP4 |
| Picture format | JPEG |
| Audio Format | AAC |
| Snap Shot | During recording |
| EIS | 6 axis image stabilizer(Optional) |
|
SOS
|
Audio alarm activates in all cameras at same group and audio alarm in command center |
|
Wireless Connections
|
|
| Wi-Fi | 2.4G&5G, AP/STA/P2P,Wi-Fi channel can be set by cam manager |
| Bluetooth | Remote controller,support second development |
| IR | 10 meters (2 IR LED) |
| GPS | Optional |
| NFC | Optional |
| 4G | Optional |
| Clustered Talkback(PTT) | Optional |
| Battery | |
| Recording and Streaming Time | 7 to 8 hours |
| Standby Time | 100+ hours |
| Charging Time | 4 hours |
| Motion Detect | support |
| Security Features(Optional) | |
| Network Security | Https&Http Server |
| Wi-Fi Security | Dynamic Pin Code authentication |
| Hardware Interface | |
| USB Port | support external camera connection |
| Pogo Pin connection | support dock & go operation |
| Mount solution | |
| Standard mount | 360 degrees rotatable crocodile mount |
| Optional mount | MOLLE compatible mount |
| Optional accessories | CLICKFAST Stud |
| External Camera | Support |
| Night Vision | Ultral low light performance & IR LED |
| Storage | Optional 32GB,64GB,128GB |
| Video Stamp | |
| Content supported | User ID/Device ID/Date/Time/Geo-tags/Logo |
