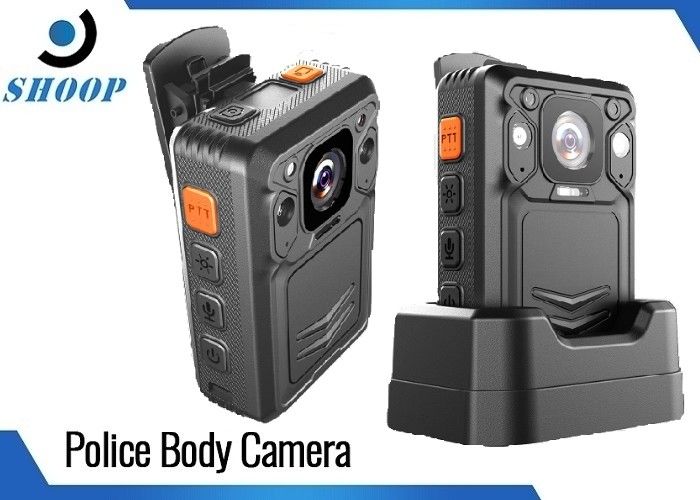

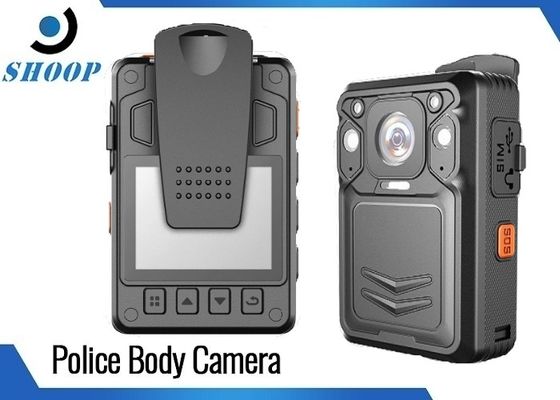

140° IP67 Ambarella H22 Law Enforcement Body Cameras

140° IP67 Ambarella H22 Law Enforcement Body Cameras

Ambarella H22 Hidden Body Camera

Body Worn Surveillance Cameras

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Special Features:
WIFI Body Cameras
View Angle:
140 Degrees
Product Name:
Law Enforcement WIFI Body Cameras
Storage Capacity:
Video Format:
12 Months
Product Description

14O Degrees GPS Law Enforcement WIFI Body Cameras For Police


Police body camera specification of SOP-13.pdf


The 4G law enforcement body camera supports real-time voice and video transmission, and can be connected to WIFI and 4G to achieve network-wide communication. The character superposition function can automatically superimpose information on the captured videos and photos, including law enforcement instrument label, time, date, alarm, longitude and latitude coordinates, etc.

Let law enforcement work more easily. If an emergency occurs, it can be reported to the back end of the command and automatically display the alarm screen. Intelligent law enforcement improves the work ability of law enforcement personnel.



  • All-glass precision wide-angle optical lens, 140 degree wide-angle
  • Hardware dual stream supports local storage and network upload
  • Built-in 4G network, real-time view of law enforcement scene, realize remote command and dispatch function
  • Built-in GPS global positioning module, real-time transmission of positioning information, to achieve personnel control
  • Back-end managers can talk with front-end law enforcement officers through two-way voice intercom
  • Built-in wifi module to realize real-time video transmission


Size 84.5mm*56.3mm*27.3mm
Weight 140g(0.31lb)
Chipsets Ambarella H22
Sensor OV05A20



3 color LED indicator for camera status

3 color LED indicator for battery level programmable buzzer


Shock Proof 1.8m (5.9ft)
IP Rating IP67
Coding H.264/H.265
View Angle 140 degrees

Video Resolution


1080P30 ( Chipsets support 4K,limit to 1080 for lower power consumption)



Video Streaming Resolution





Audio Streaming Support
Text Streaming Support
Streaming Bitrate 300kbs-4M kbs
Video Format MP4
Picture format JPEG
Audio Format AAC
Snap Shot During recording
EIS 6 axis image stabilizer(Optional)



Audio alarm activates in all cameras at same group and audio alarm in command center

Wireless Connections


Wi-Fi 2.4G&5G, AP/STA/P2P,Wi-Fi channel can be set by cam manager
Bluetooth Remote controller,support second development
IR 10 meters (2 IR LED)
GPS Optional
NFC Optional
4G Optional
Clustered Talkback(PTT) Optional
Recording Time

1080P Up to 12 Hours;480P Up to 15 Hours

GPS and WIFI on at 480P30 12 hours and 30 minutes

Recording and Streaming Time 7 to 8 hours
Standby Time 100+ hours
Charging Time 4 hours
Pre&post recording
Pre-recording 30 seconds to 1 minute varies from resolution settings
Post-recording 30 seconds to 1 minute varies from resolution settings
Motion Detect support
Security Features(Optional)
File Encryption AES256 encryption during writing files to memory card AES256 encryption RTSP Video/audio/Text streaming data
Network Security Https&Http Server
Wi-Fi Security Dynamic Pin Code authentication
USB Command&JSON command

all camera settings available under mass storage mode all camera settings available under USB simple mode USB heart beat available

control over LED/buzzer available under mass storage mode Ambarella driver free even while USB encryption activated Support driver free connection to computer

Hardware Interface
USB Port support external camera connection
Pogo Pin connection support dock & go operation
Mount solution
Standard mount 360 degrees rotatable crocodile mount
Optional mount MOLLE compatible mount
Optional accessories CLICKFAST Stud
External Camera Support
Night Vision Ultral low light performance & IR LED
Storage Optional 32GB,64GB,128GB
Video Stamp
Content supported User ID/Device ID/Date/Time/Geo-tags/Logo


Improve efficiency and simple work. 4G or WIFI can assist the real-time communication between the law enforcement field and the command center to achieve multi-party support and coordinated command. The background management always has insight into the deployment of the police force and the development of the police situation on the spot. The overall law enforcement process can improve the efficiency of law enforcement, and It can effectively protect the personal and property safety of citizens and win the public's trust and support for law enforcement officers.
