Place of Origin:
ShenZhen
Brand Name:
Ishoop
Certification:
CE,ROHS,IP67
Model Number:
SOP-08
Contact Us
Video

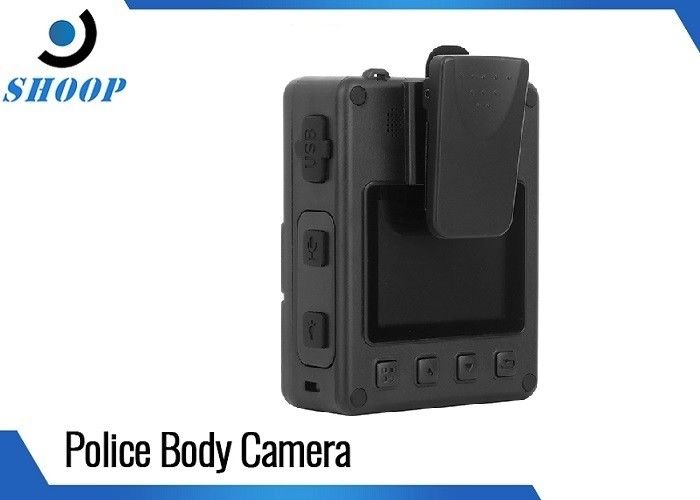

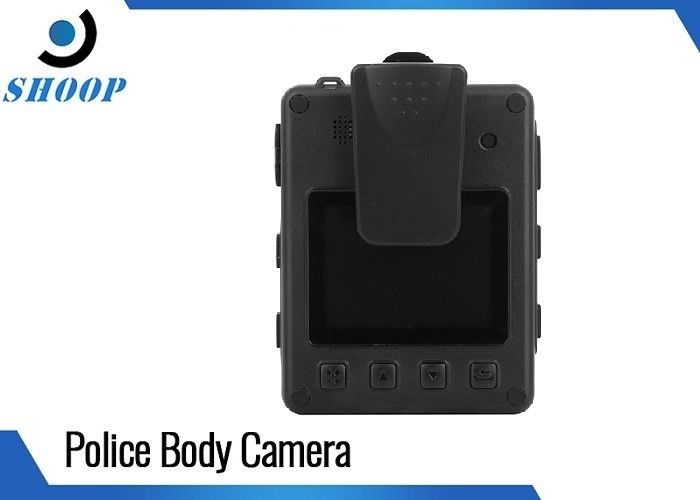

H.264 Video Format Security Body Camera 12 Hours Fast Charge CMOS OV4689 Sensor
Specification of body police camera-SOP-08.pdf
Description:
Body cameras were supposed to build trust between police and the people they serve. In the wake of highly publicized police shootings, only occasionally recorded by bystanders but often sparking protests, police departments invested in body cameras to promote accountability.
Studies have consistently shown that by deploying body-worn cameras, agencies see a reduction in the number of complaints and use of force incidents.
With permanent metadata embedded in every video, agencies can be confident that their evidence will be the highest quality and maintain strict chain of custody and audit requirements for prosecution.
Main Parameters:
| Main Chipset | AIT8328 |
| Sensor | CMOS OV4689 |
| Video Resolution |
2304x1296(30 fps)/1920x1080(30 fps) 1280x720(60 fps)/1280x720(30 fps) |
| Video Format | H.264 .MOV |
| watermark | User ID, Date Time Stamp |
| Camera | 32Megapixels |
| Image Format | Maximum:4608x3456 JPEG |
| Snap Shot | Capture Photos while video recording |
| Recording Time | Continuous Recording time: 10hours |
| Storage Capacity | 32G/64G/128G |
| IR Lights | 2 IR lights |
Specification:
| Serial number | Name | Function Description |
| 2 | IR LED Light | Open the display black and white images,in the dark environment of the camera fill light to make the recorder efficient work effective distance of 20 meters.Can see 15 meters of at the character of the character,and can see 20 meters at the figure of the human body. |
| 5 | Lens | Used to capture of the images so that the display shows the corresponding image. |
| 6 | Video Recording Button | In the shutdown mode,press and hold the recorder to start recording at the same time, press it briefly in the standby mode, press it again to stop recording and save the contents. |
| 8 | Power On/Off | In the shutdown state, Press the power on, in the standby mode, press the shutdown, press any state in the boot short press to turn off the display to save power, again short press to open the display. |
| 9 | Indicator light 1 | When charging the blue light, fully charged, the lights automatically extinguished. |
| 10 | Indicator light 2 | The standby light green when the machine is turned on; the red light flashes when recording; the yellow light flashes when recording. |
| 12 | Reset | In the power-on state, if you press the reset button, the recorder will be powered off, used to deal with abnormal situation recorder. |
| 13 | The position of the metal clip | This position can be used with clips for fixing the recorder. |
| 14 | TFT HD display | 2.0 inch TFT HD display for displaying the current viewfinder and stored information content. |
| 15 | Menu | Press the button, in the standby mode short press to enter the menu settings, other states short press to return to the currently selected upper menu. Video and recording short press for important file marked; long press for the lock screen again long press to cancel the lock screen. |
| 16 | Up/Left | In the standby mode, long press is continuously zoom out the zoom image, when playing video and recording short press is the rewind function, in other state up to browse the selection. |
| 17 | Down/Right | In the standby mode, long press is continuous zoom zoom screen, when playing video short press is fast forward function, in other state down to select the choice. |
