External Mini Body Worn Video Recorder Shockproof With CMOS OV4689 Sensor

External Mini Body Worn Video Recorder Shockproof With CMOS OV4689 Sensor

law enforcement video recorder

police camera recorder

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Dock Station:
Battery Capacity:
Memory Capacity:
IR Lights:
2 IR Lights
94 Mm *61 Mm *31mm
Night Vision:
Up To 15Meters With Visible Face Detection
Lens Angel:
Wide Angle 140 Degrees
Product Description

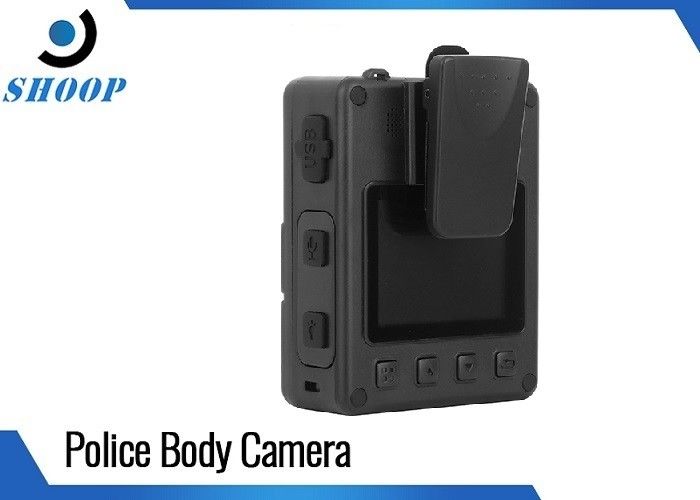

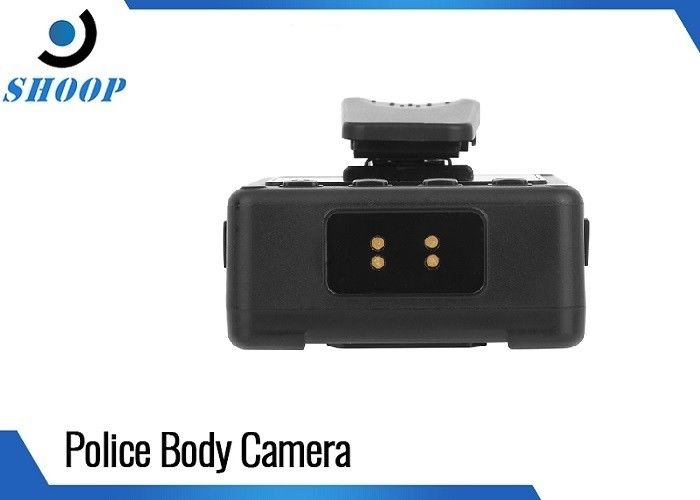

External Mini Body Worn Video Recorder Shockproof With CMOS OV4689 Sensor


Specification of body police camera-SOP-08.pdf


product description

This is the newest body camera, we can assure that every button and every edge-line are utimately testified by several emergent situation. The camera support external mini camera, one button recording. IP 67 waterproof/weatherproof, night vision, motion detection, build-in gps is optional. Also the reliable system and ultra-clear camera fully support our test officer. Waterproof and Shorkproof material improved the stability of the recording system.
In addition, we have developed a complete set of workstations.
Ishoop Police Body Camera Data Management System
Ishoop Vertical & Portable Body Worn Camera Docking Station
These are 2 different kinds of mutifunctional station that matching to our body camera. It is much more convenient to use our matching docking station than to connect every body camera to a computer.




Main Parameters

Main Chipset AIT8328
Sensor CMOS OV4689
Video Resolution

2304x1296(30 fps)/1920x1080(30 fps)

1280x720(60 fps)/1280x720(30 fps)

Video Format H.264 .MOV
watermark User ID, Date Time Stamp
Camera 32Megapixels
Image Format Maximum:4608x3456 JPEG
Snap Shot Capture Photos while video recording
Recording Time Continuous Recording time: 10hours
Storage Capacity 32G/64G/128G
IR Lights 2 IR lights
Attack Sensor support
GPS Support, Built-in, optional
Wi-fi Support, Built-in, optional



Serial number Name Function Description
1 IR LED Light Open the display black and white images,in the dark environment of the camera fill light to make the recorder efficient work effective distance of 20 meters.Can see 15 meters of at the character of the character,and can see 20 meters at the figure of the human body.
2 Lens Used to capture of the images so that the display shows the corresponding image.
3 Video Recording Button In the shutdown mode,press and hold the recorder to start recording at the same time, press it briefly in the standby mode, press it again to stop recording and save the contents.
4 Power On/Off In the shutdown state, Press the power on, in the standby mode, press the shutdown, press any state in the boot short press to turn off the display to save power, again short press to open the display.
5 Reset In the power-on state, if you press the reset button, the recorder will be powered off, used to deal with abnormal situation recorder.
6 The position of the metal clip This position can be used with clips for fixing the recorder.
7 TFT HD display 2.0 inch TFT HD display for displaying the current viewfinder and stored information content.
8 Menu Press the button, in the standby mode short press to enter the menu settings, other states short press to return to the currently selected upper menu. Video and recording short press for important file marked; long press for the lock screen again long press to cancel the lock screen.
9 Up/Left In the standby mode, long press is continuously zoom out the zoom image, when playing video and recording short press is the rewind function, in other state up to browse the selection.
10 Down/Right In the standby mode, long press is continuous zoom zoom screen, when playing video short press is fast forward function, in other state down to select the choice.
11 Back Return to the previous step. In the standby mode short press to enter playback mode;
12 USB Through the USB data cable to connect the charger to charge, can be used for USB data cable and computer connection, read data and charge at the same time can automatically boot, connect an external camera
13 Sound Recording Button In the standby mode,press it for recording,press it again to stop recording and save the contents.
14 Photo Button Press in the standby mode to make pictures and save pictures.

External Mini Body Worn Video Recorder Shockproof With CMOS OV4689 Sensor 0
