Auto Charging Body Worn Video Camera Docking Station For Police Using 20 Port

China Auto Charging Body Worn Video Camera Docking Station For Police Using 20 Port supplier

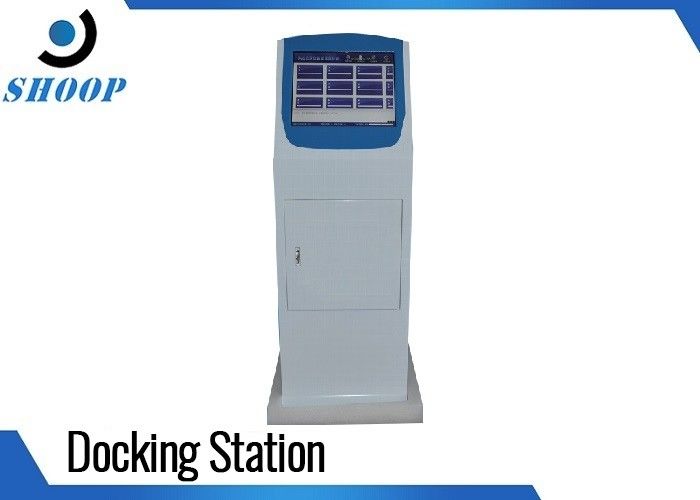

Large Image :  Auto Charging Body Worn Video Camera Docking Station For Police Using 20 Port

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Ishoop
Certification: CE
Model Number: SOP-A2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Neutral Carton Packing
Delivery Time: 1-2 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 8000pcs/per month
Contact Now
Detailed Product Description
Function: Multi-cameras Uploading And Charging Maximum Number Of Connections: 20 Ports
Voltage Of Each Port: 5 V Maximum Input Power: 500W
Sensor: CMOS Waterproof: IP67
Memory: 4G Kingston DDR3 1333 Memory Main Board: B75 Main Board

Auto Charging Body Worn Video Camera Docking Station For Police Using 20 Port





The integrated evidence management software of Docking Station allows authorized users to manage and configure body cameras, manage evidence, create cases, customize reports, and view audit trails. In addition, open platform technology provides agencies with the flexibility to integrate virtually any custom application into the docking station software, so that features and functions can be modified to fit their unique needs.

  • All-metal structure, it is durable and tough.
  • Fully compatible with USB1.1 and USB2.0, support hotswappable, compatible with most of body worn cameras.
  • With dual protection on the output, it can protect your connected device from overloading, support overload voltage and instantaneous current protection; each port provides up to 2.0A current.
  • Enforcement recorder clip can be fixed at ten slots, which are neatly arranged.
  • Docking station hasvents, internal motherboard is equipped with a fan. To prevent from downtime due to over heat.
  • Equipped with a switch, which can be directly turn off eight USB power.
  • Support Win7, Window Vista, Windows XP Professional / Home Edition Window98 / ME / 2000 Professional / and others.

Evidence Management Software

  1. User permissions and group access
  2. Chain of custody tracking
  3. Accidental deletion prevention
  4. Customizable, detailed overview and reporting
  5. Advanced search and review options for video, photo and audio
  6. Case evidence management by authorized users from workstations through secure web logins
  7. Open platform technology allows certain software customization based on agency’s needs

Hardware

configuration

Port 20 ports
Main board B75 main board
CPU Intel I3 3240 Dual core four thread (LGA1155/3.3GHZ/3M)
Memory 4G Kingston DDR3 1333 Memory
Hard disk 4T Seagate hard disk ST4000DX004 7200rpm, 6Gb/s,
Source 500 W
System Disk 60G Solid disk
Network Card Kilomega net card
Disk Array Hard disk can extend to 4T*6 (with array)
Display 19 inch LCD touch screen, Resolution 1920*1080
Horn Loudspeaker
Software System WIN 7 32/64 bit system
Utility Software Electronic evidence management system
Database SQC server express 2008
Wire Material Data Wire 5P USB data line
USB Interface USB 3.0 HUB,transmission rate≥400M/min
Network Wire RJ45 network wire
Power Wire 1.8M standard power line
Power Input Power 220V AC
Accessory User Manual User handbook CD
Software Encryption Software encryption dog HASP PRO(sub lock)
Fuse 220V 10A fuse
New Function System recovery

Using 60G solid hard disk to do system disk,

to make system recovery function,

when the operating system or software abnormal,

it can be restored to the factory state.

Auto switch machine

To protect the data station, the machine can shut down

And turn on automatically at a regular time everyday

or every week by your setting.

Screen protect

The screen saver function, the screen will be off automatically

if the user don’t operate the machine more than 10mins;

touch screen, the machine will wake up.
